| Qubed POS100

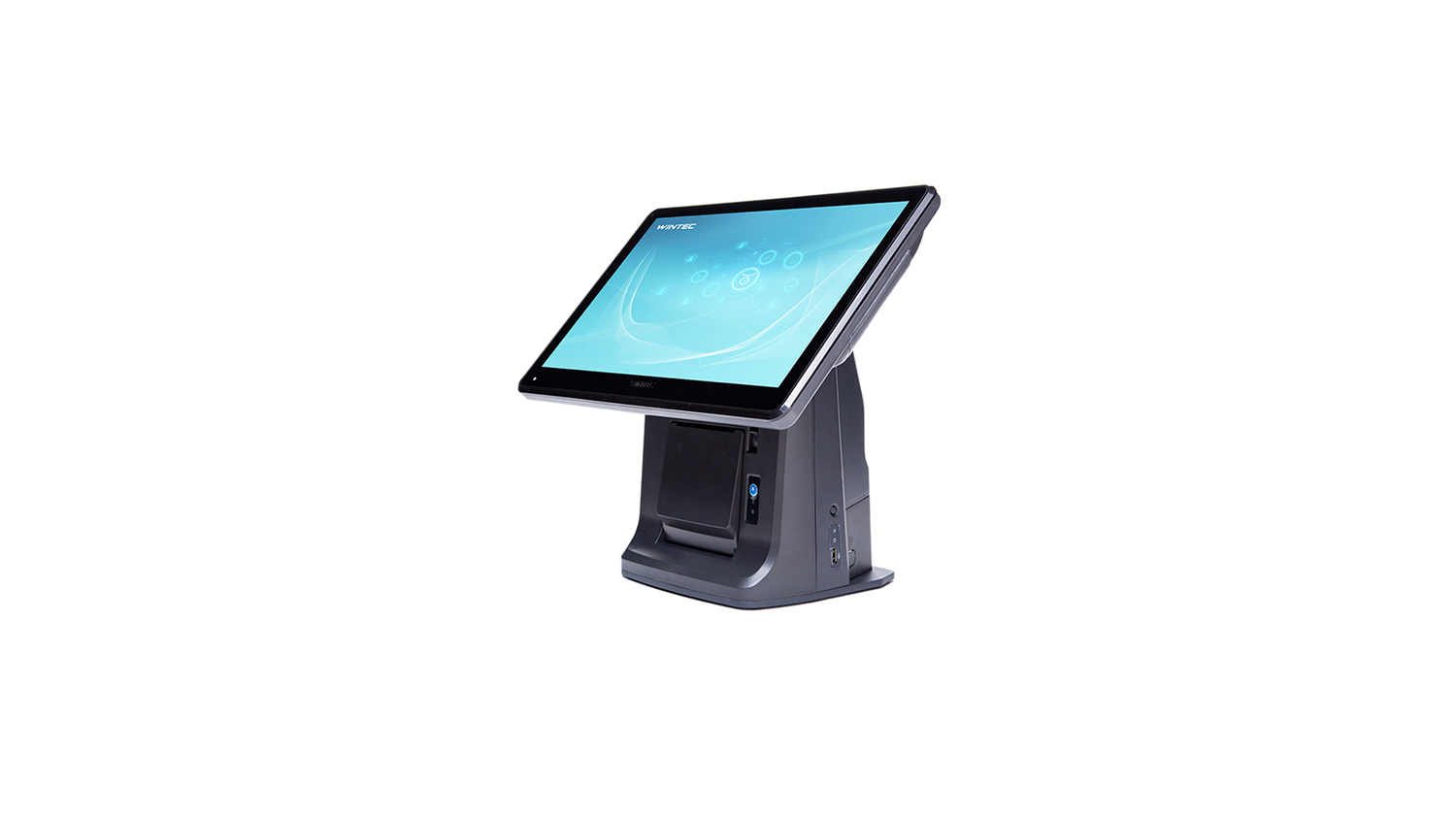

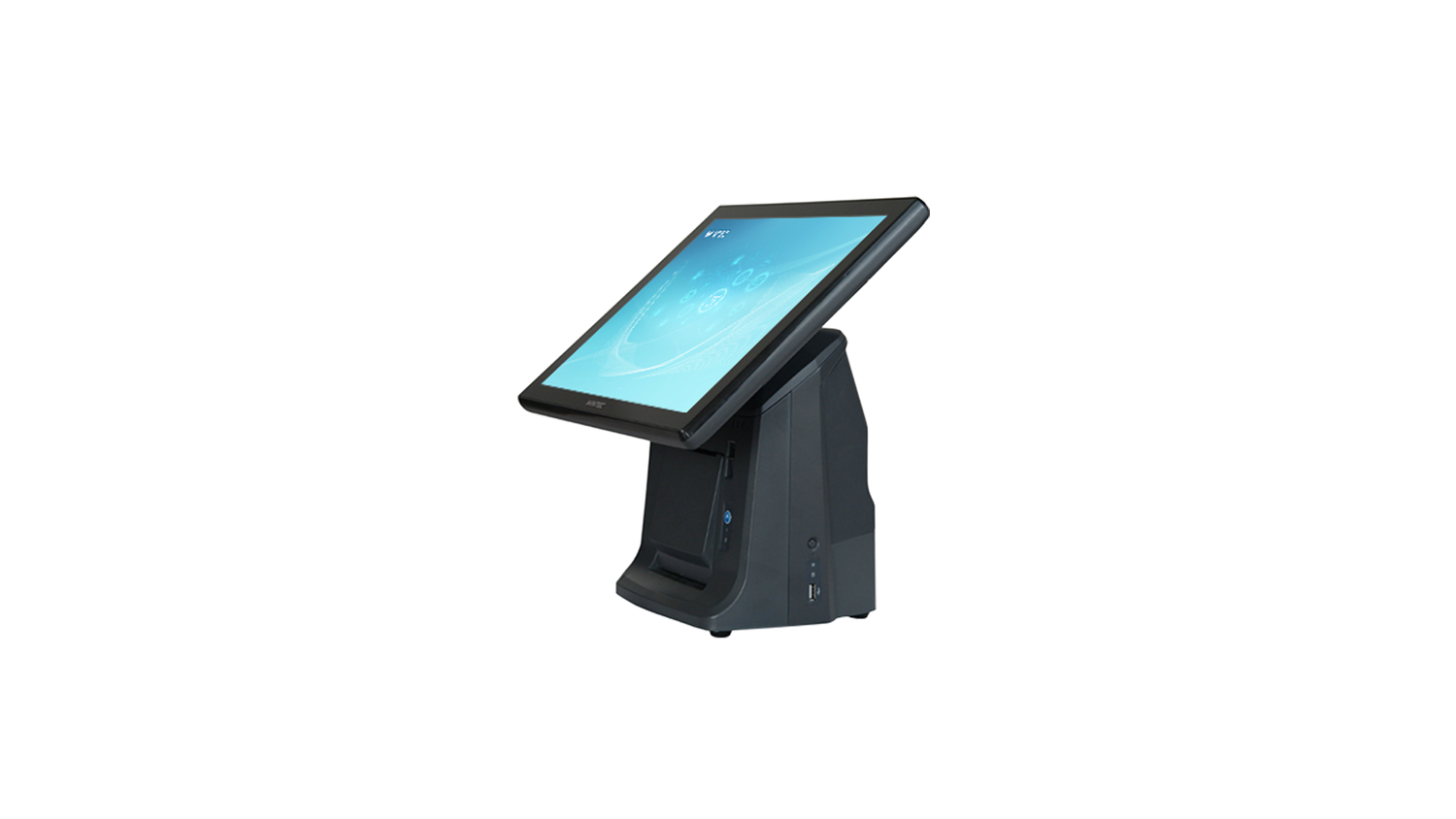

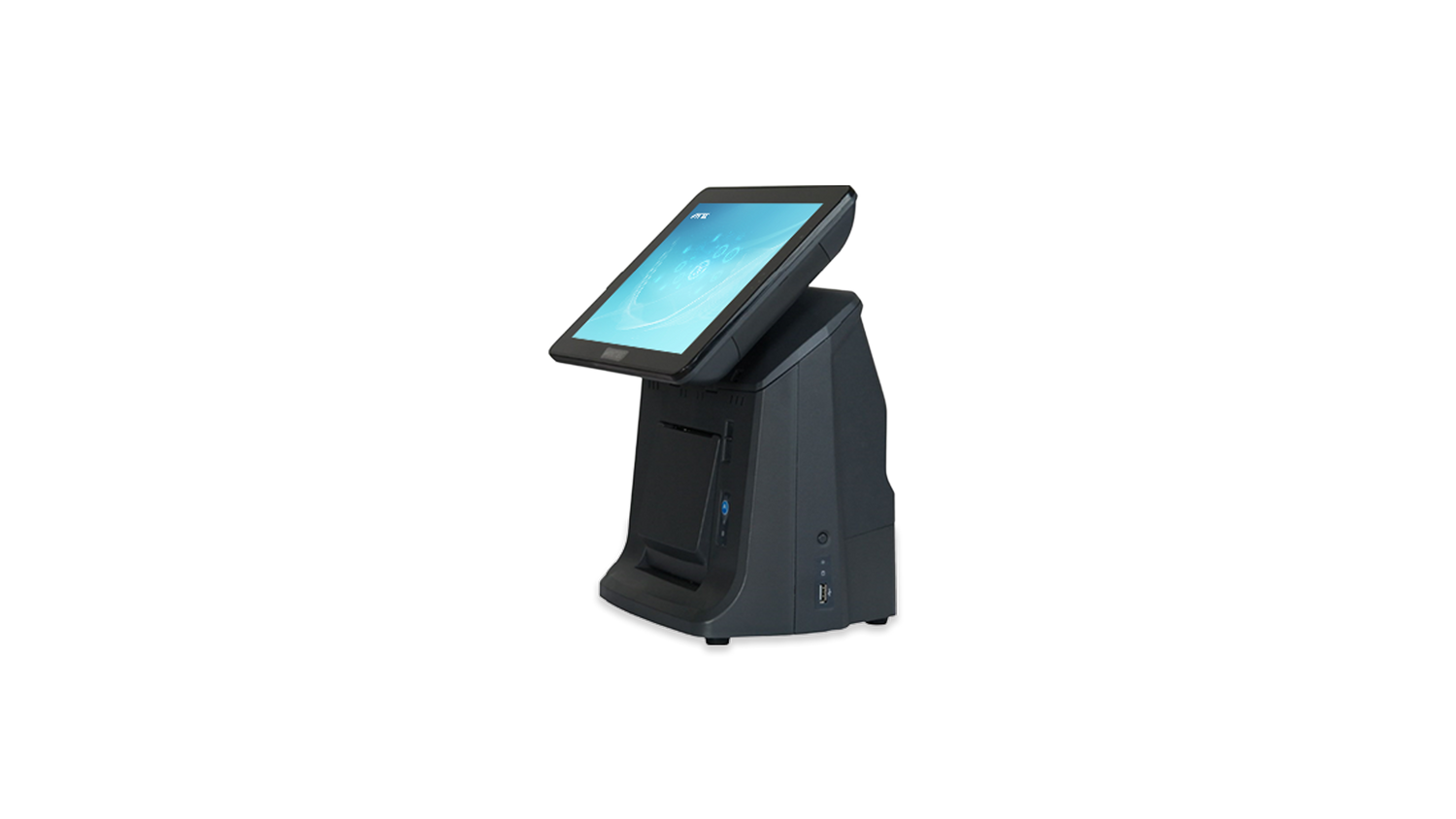

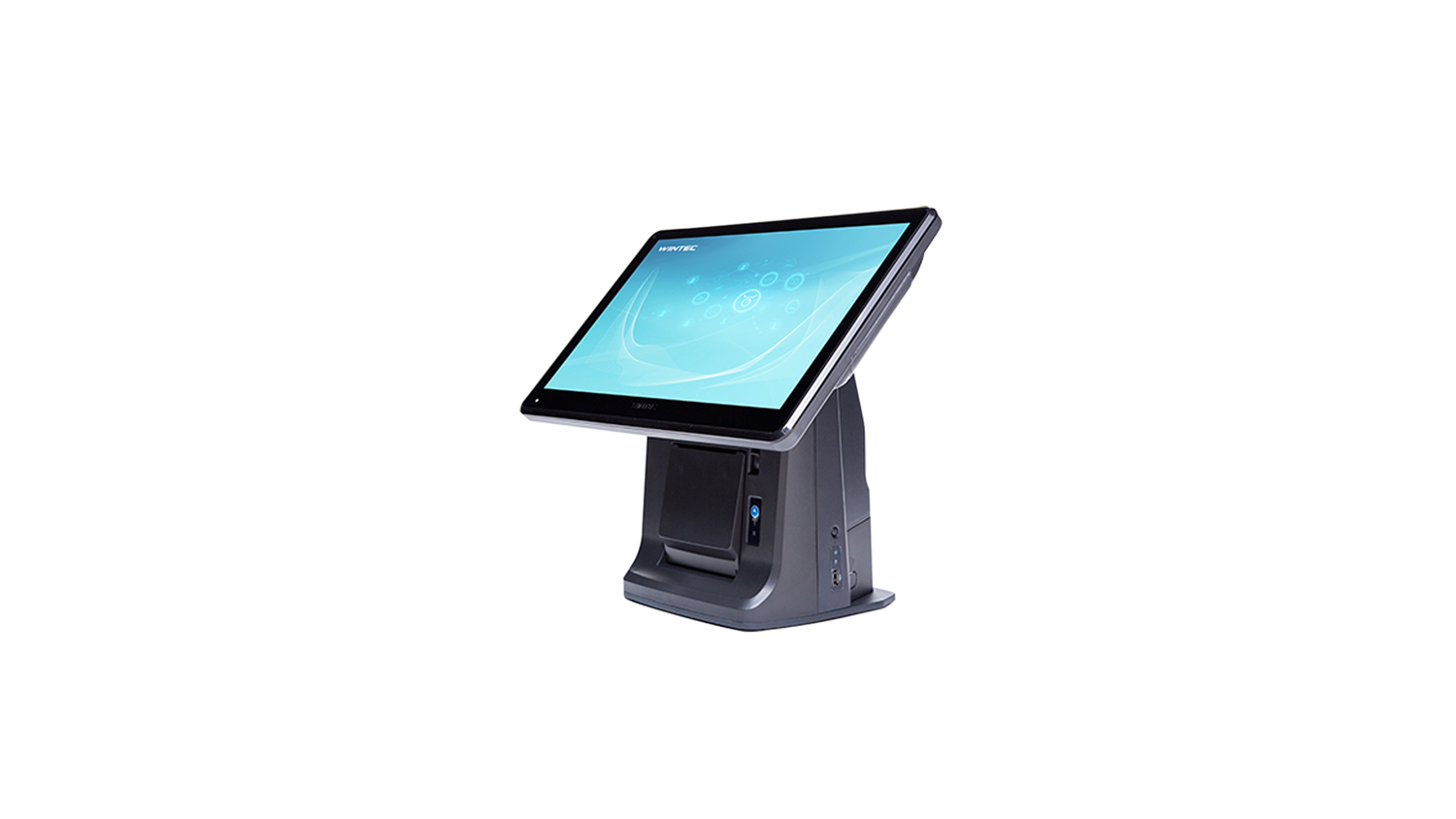

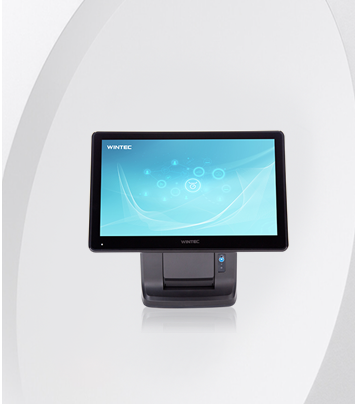

The POS100 is a robust, all-in-one modular, fan-less POS system.

It brings quiet elegance and high reliability to any retail or hospitality service counter.

1 5

| Key Features

Various display sizes available 9.7'', 14'' or 15.6''

Vertical design with 80 mm built-in thermal printer

Integrated POS with a small footprint

Aluminum housing & fan-less construction

Splash-proof touch screen



| Specifications (Windows)

  • CPU

    Baytrail J1900 Quad-core

    (optional I3/I5)

    Memory RAM

    DDRIII 8GB

    HDD/SDD

    256GB mSATA SSD

    Display

    Main display:

    15.6'' TFT 1920*1080,

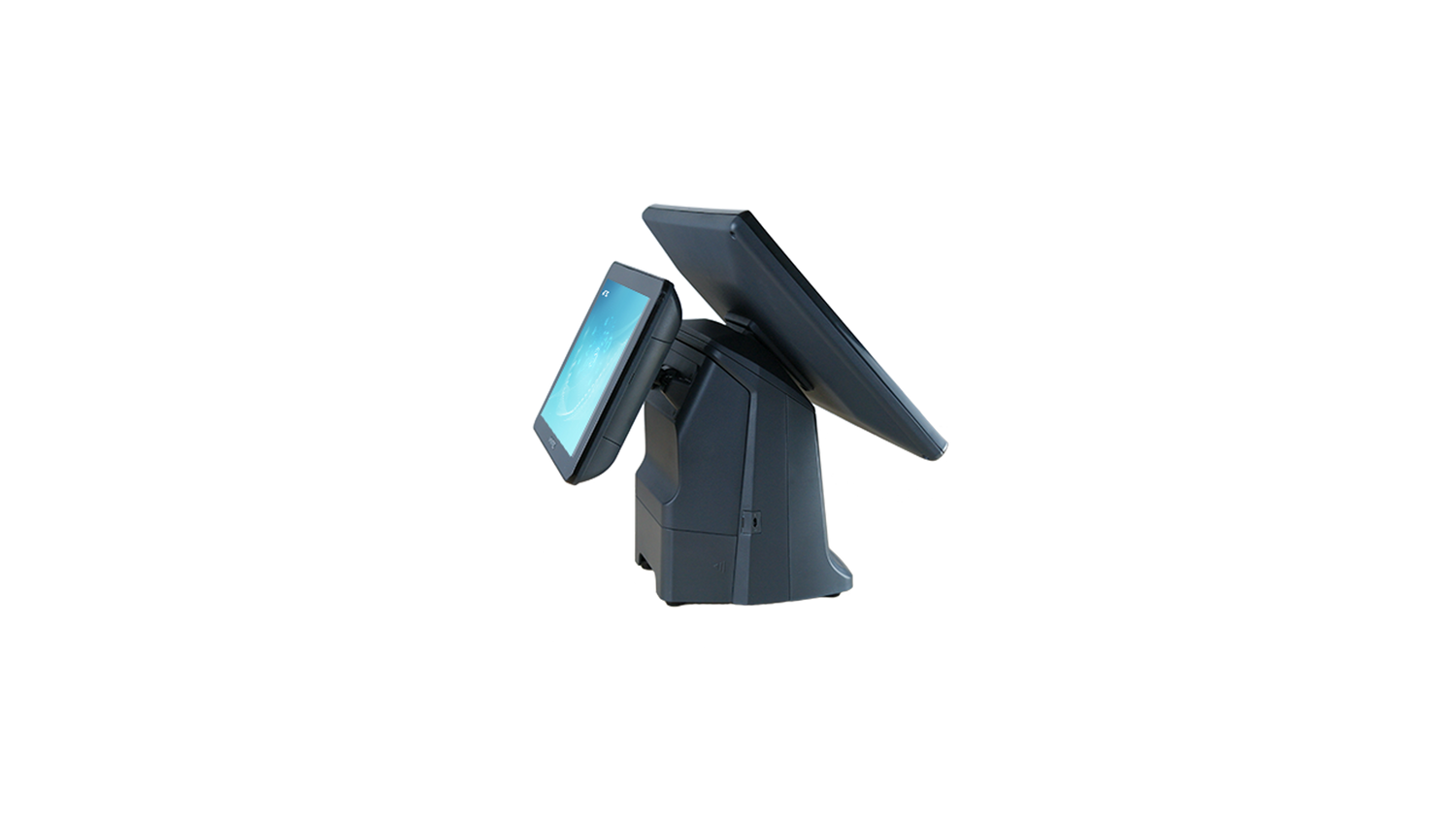

    2nd display (optional):
    9,7'' TFT 1920*768,

    15'' TFT 1024*768,

    2x20 LCD customer display

  • OS

    Windows 7/10/11 or Linux

    Touch Panel

    PCAP touch with multi-touch support

    WiFi

    Optional, IEEE 802.11b/g/n

    Power Adapter

    DC 24V/2.75A

    Ethernet

    1*10/100M

  • Printer

    80mm thermal printer w/Auto Cutter

    Bluetooth

    Optional, BT4.0

    Dimensions (mm)

    343*223*357

  • I/O Ports

    5x USB, 3x RS232, 1x PS2, 1x VGA, 1x RJ45, 1x Drawer, 1x12V out (w/ printer)

    Optional

    MSR, 2D Barcode Scanner or Biometric Fingerprint Reader

Download POS100 Brochure

Please contact us if you would like to receive more information.
