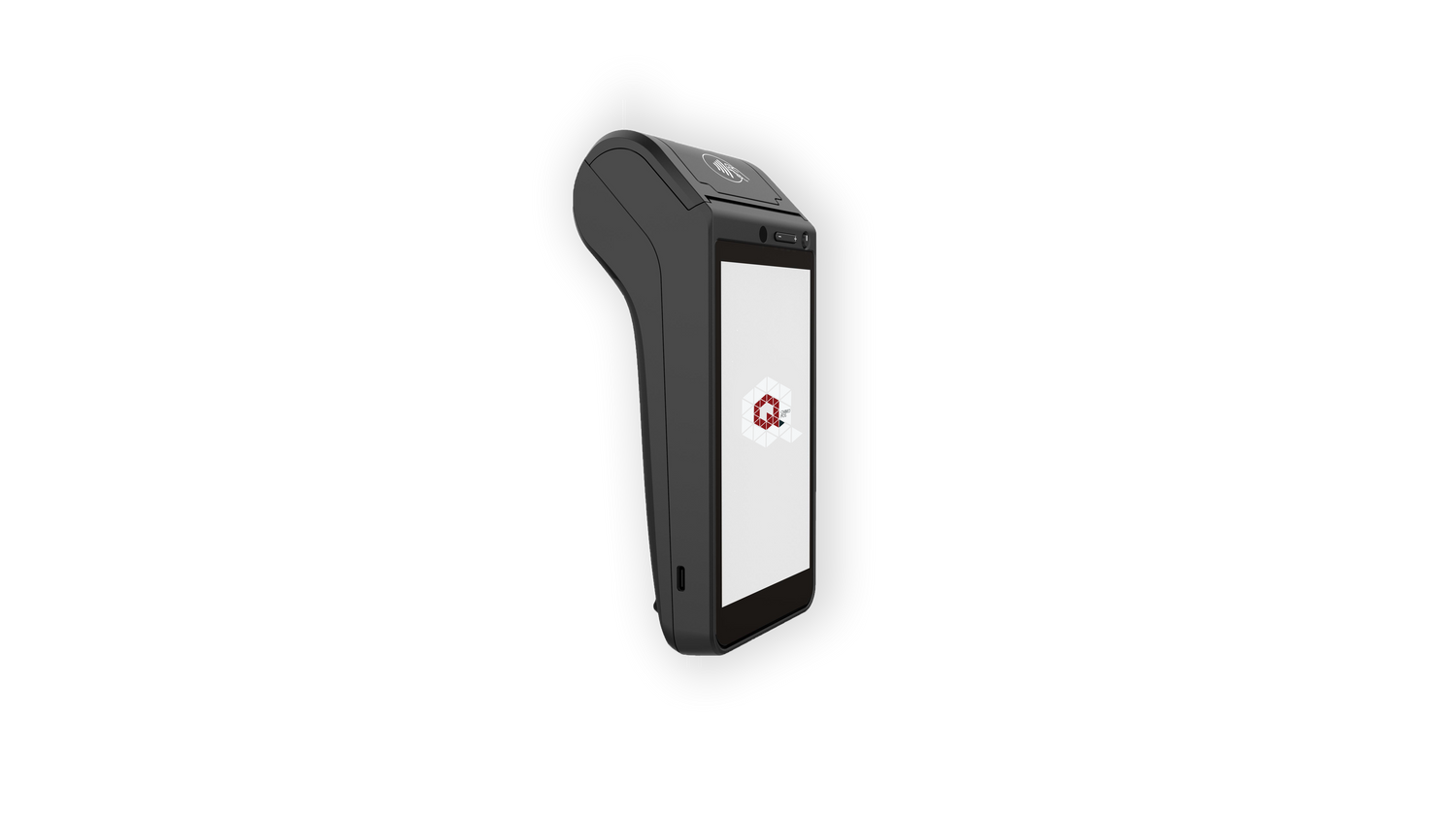

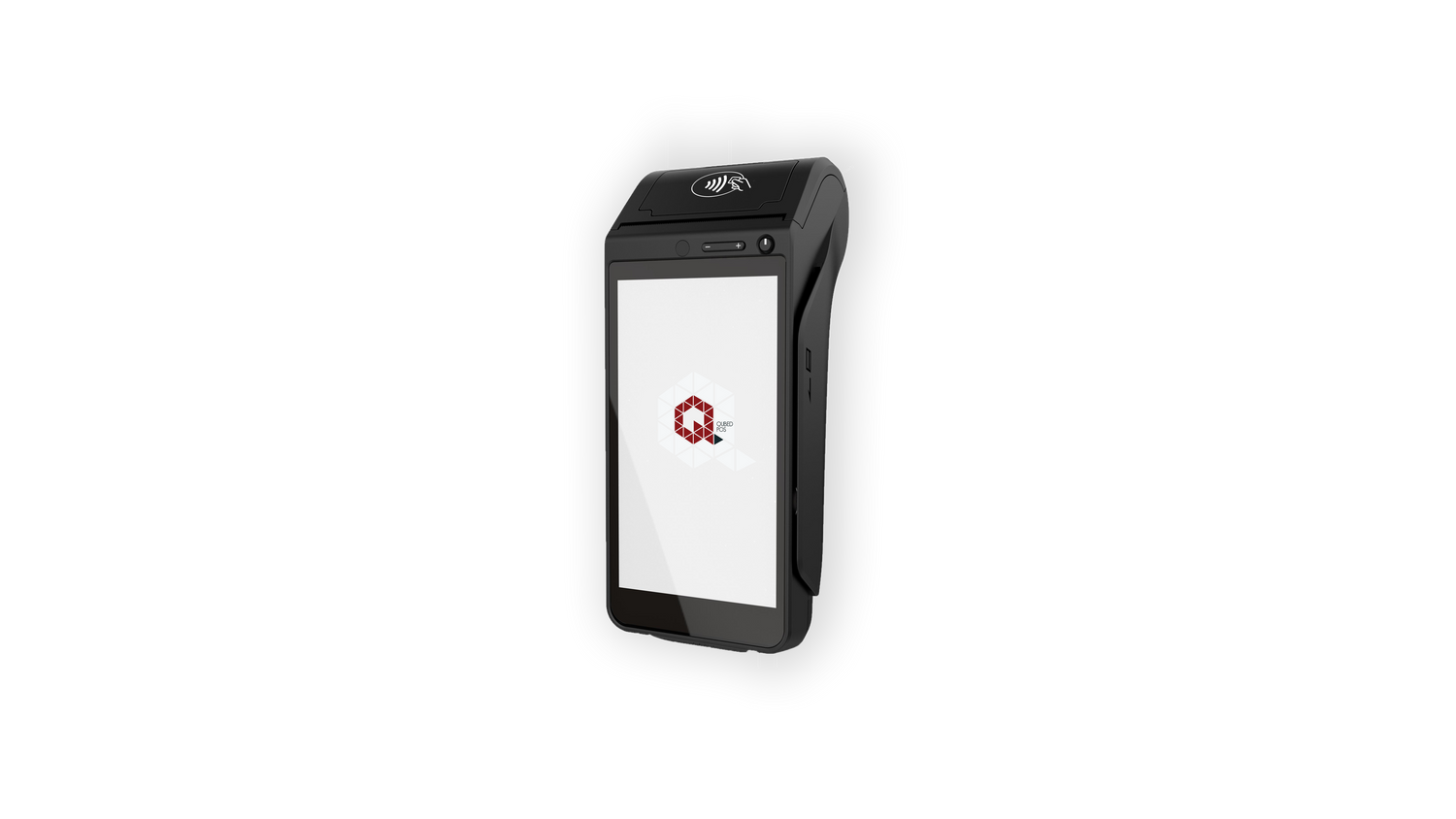

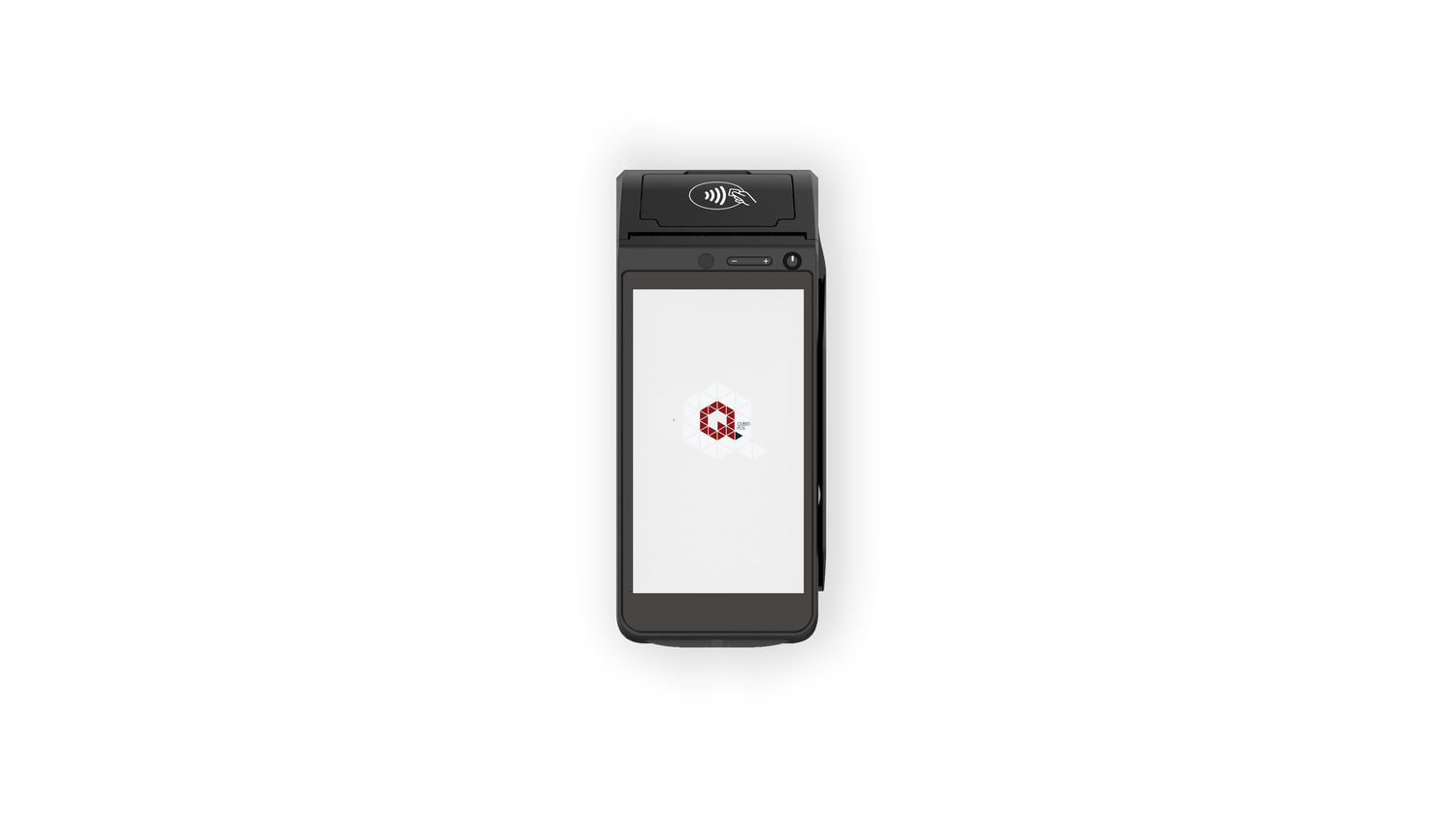

| Qubed SmartPOS
Secure Asmart OS based on Android OS.
Quad Core CPU design for high performance.
A 5.5-inch HD touch screen ensures a pleasant and interactive experience.
Excellent ergonomic design and compact appearance. Well suited to any environment.
| Key Features
PCI PTS 6. X, EMV Level 1 & 2, PBOC
Visa PayWave, Mastercard PayPass certified
Equipped with tamper protection
Accepts various payment methods, including cards, NFC, or QR payments
They are widely used in finance, catering, retail, logistics, insurance, and many other industries.
| Specifications
-
CPU
Cortex-A53 CPU
Card Reader
Magnetic Card Reader
IC Card Reader
Contactless Card Reader
Display
5.5"HD
720×128 Pixels
Printer
High-Speed Thermal printer
Paper Width:58mm
Diameter: 40mm
-
OS
Android 10.x
Communication
4G,WiFi,GPS,Bluetooth
Peripheral Ports
1 x Type-C USB
Power
Input: 100-240V AC, 50/60Hz Output: 5V DC, 2A
Battery
Rechargeable Li-ion Battery 7.2V/2600mAh
-
Memory
1GB RAM+8GB ROM
Support Micro SD Card, up to
32GBLocation
GPS/BEIDOU/GLONASS
Buttons
Power button
Volume +/-
Dimensions
192×84×63.5mm
Weight: 486g -
Camera
Front：0.3MP
Rear：5MP
Reads 1D & 2D Codes
Card Slots
Single SIM
(Dual SIM Optional)
1 x SAM
1 x SD Card
Certifications
PCI PTS 6.x, EMV LEVEL 1&2, PB0C3.0,
Visa PayWave,
MasterCard PayPass, AmericanExpresspay,
Discover, JCB, UnionPay, CE
Download SmartPOS Brochure
The SmartPOS Solution is implemented with integrated software and Payment API. Please contact us if you would like to receive more information.
