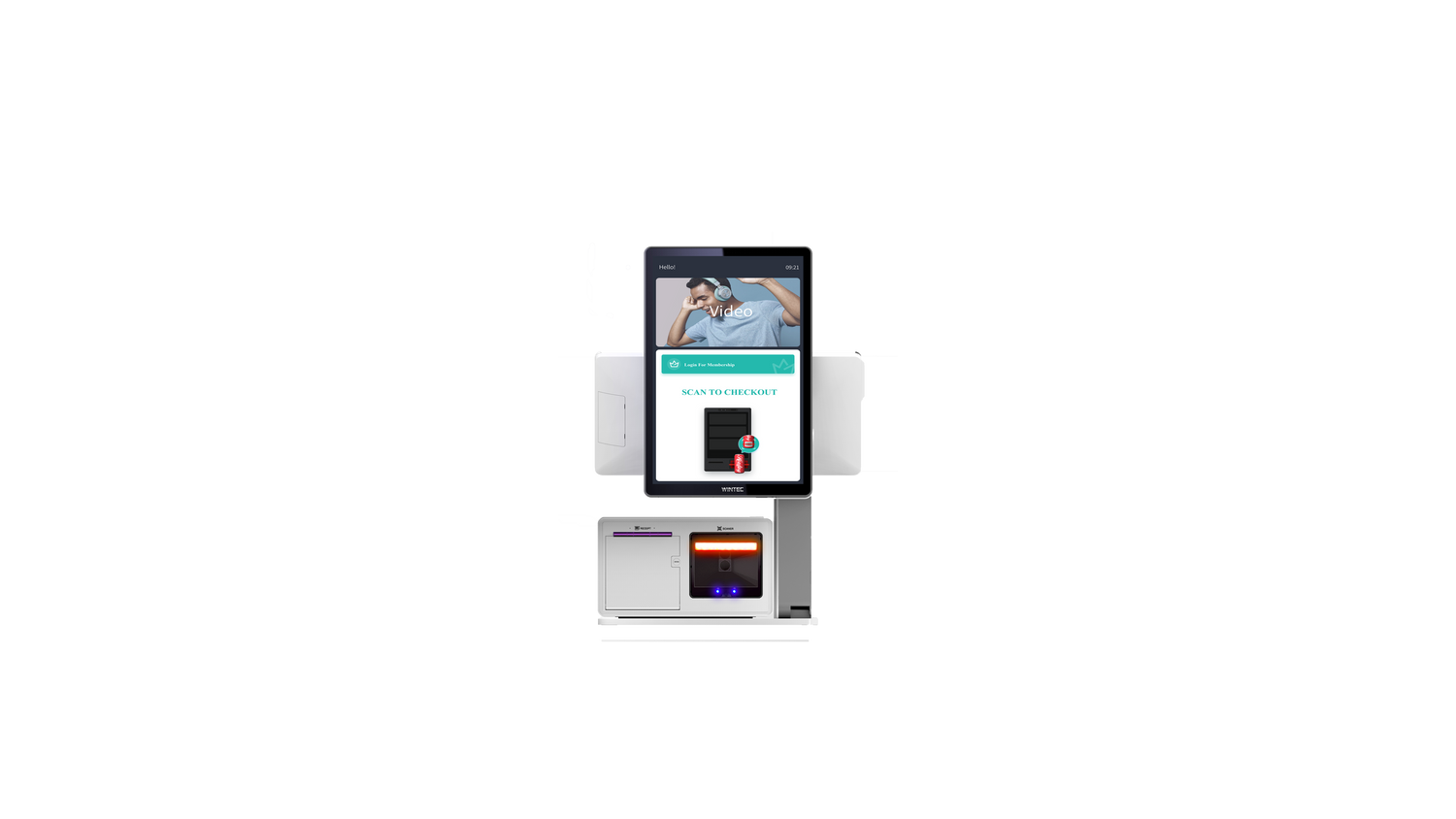

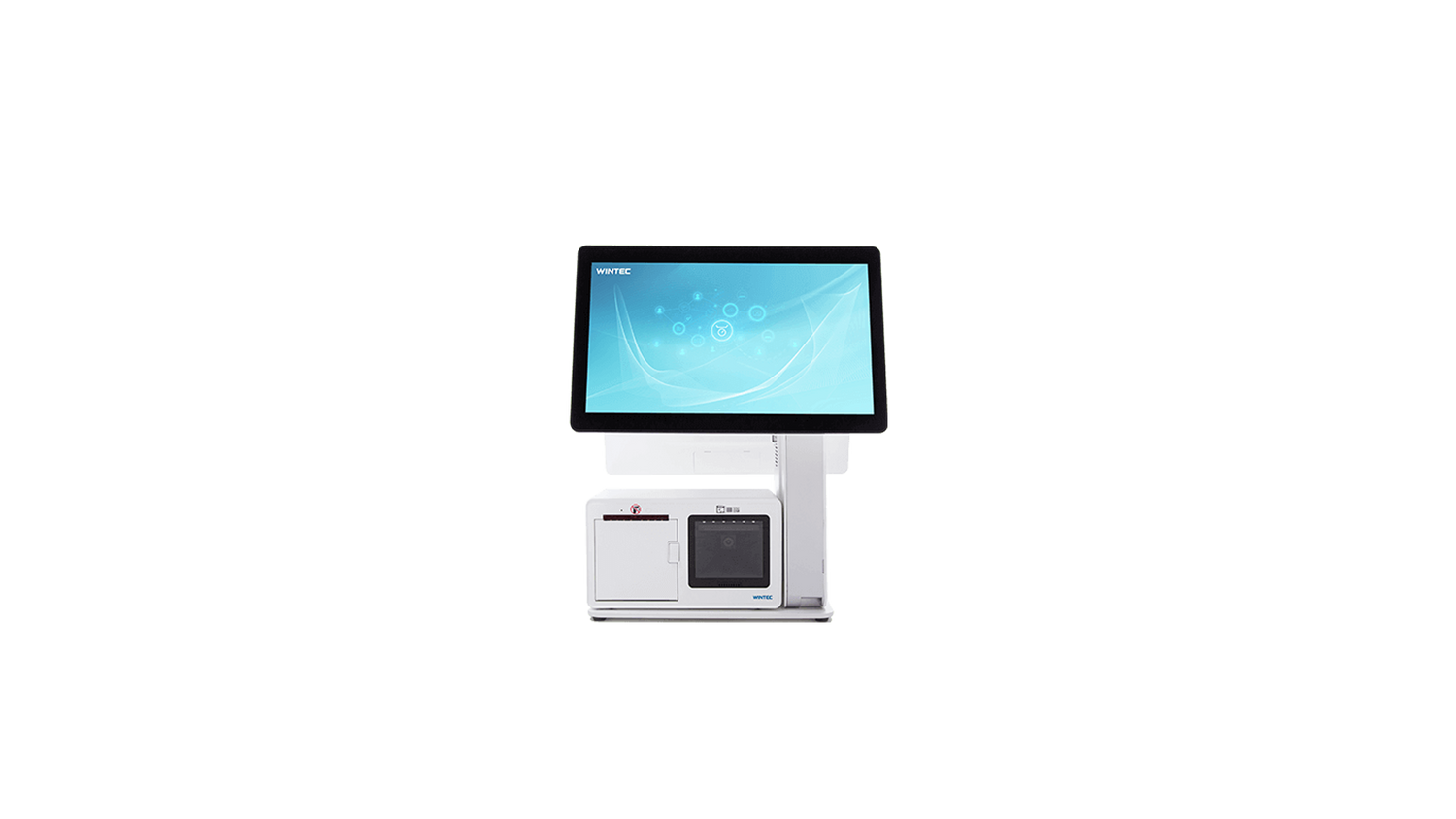

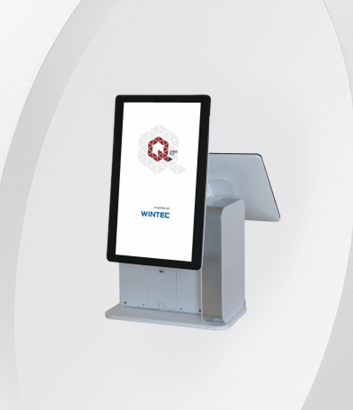

| Qubed POS300

High performance, low power consumption, great efficiency

Well suited for retail and hospitality industries with excellent performance

Excellent performance in supermarkets and restaurant environments.

1 5

| Key Features

Dual 15.6’’ Screens

2nd Display Horizontal/ Vertical 0-90° Rotation

Flexible Scanner & Printer Module

Compact design for any store format

Modern & Stylish

| POS300 Video

| Specifications

  • CPU

    Elkhart J6412 FANLESS

    Tigerlake i3 1115G4

    Tigerlake i5 1135G7

    Memory RAM

    DDR4 8GB

    HDD/SDD

    256GB mSATA SSD

  • OS

    Windows 10IOT / 11

    Touch Panel

    PCAP touch with multi-touch support

    WiFi

    Optional, IEEE 802.11b/g/n

    Power Adapter

    DC 24V/2.75A (w/ printer)
    DC 12V/4A (w/o printer)

    Ethernet

    1*10/100M

  • Bluetooth

    Optional, BT4.0

    Dimensions (mm)

    258*380*55 (dual 15,6 '')

    Display

    Main display:

    15,6'' TFT 1920*1080
    2nd display (optional):
    15,6'' TFT 1920*1080

    Speaker

    1*4W speaker

  • Interface 1

    4*USB,2*RJ48(RS232),

    1*RJ45,1*DK, 1*DC

    Interface 2

    2*DB9(RS232),4*USB,1*DC24
    out, PS2

    Printer & Scanner (Optional)

    80mm thermal printer w/Auto Cutter

    2D Multi-line Scanner

    Optional

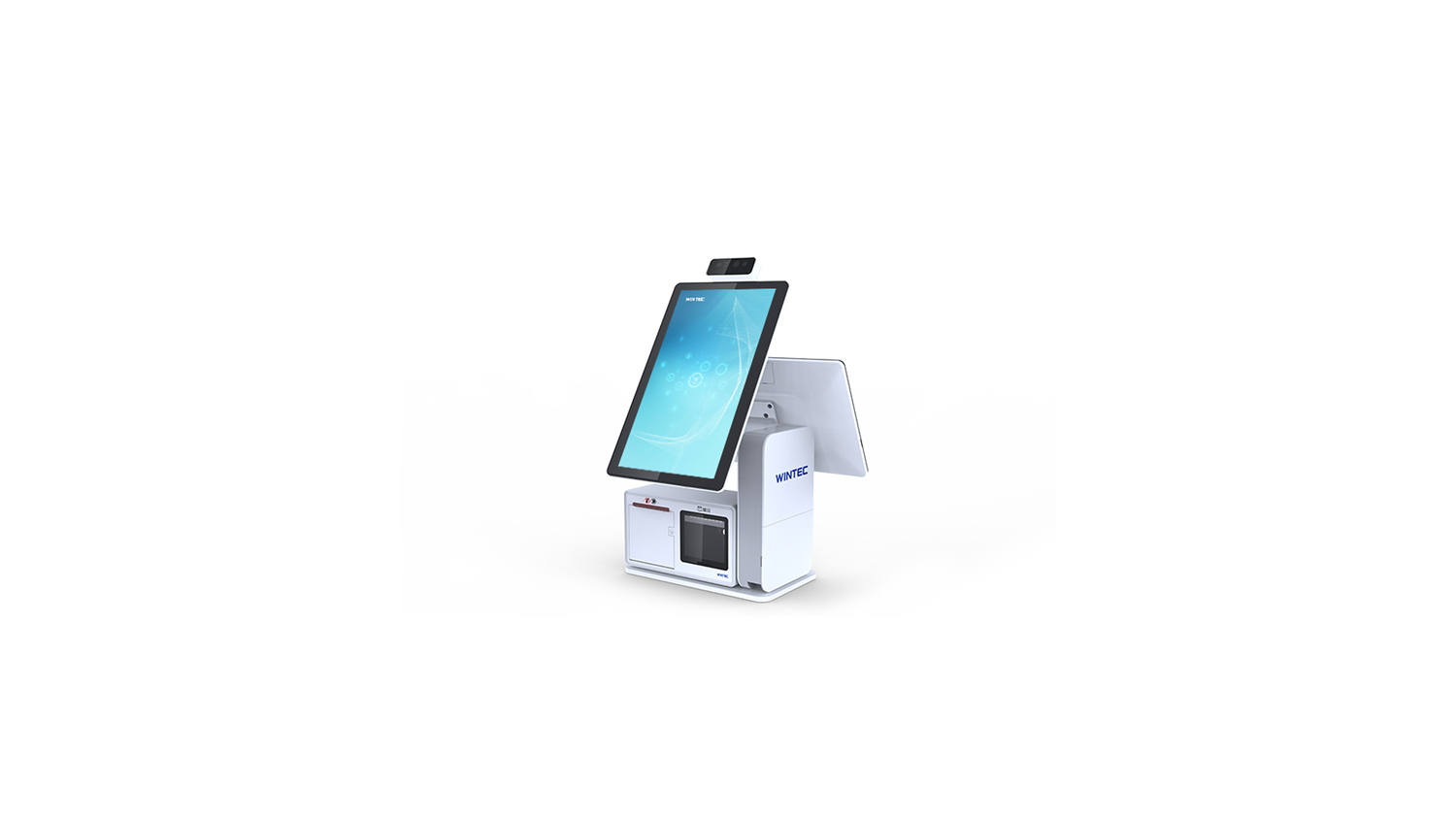

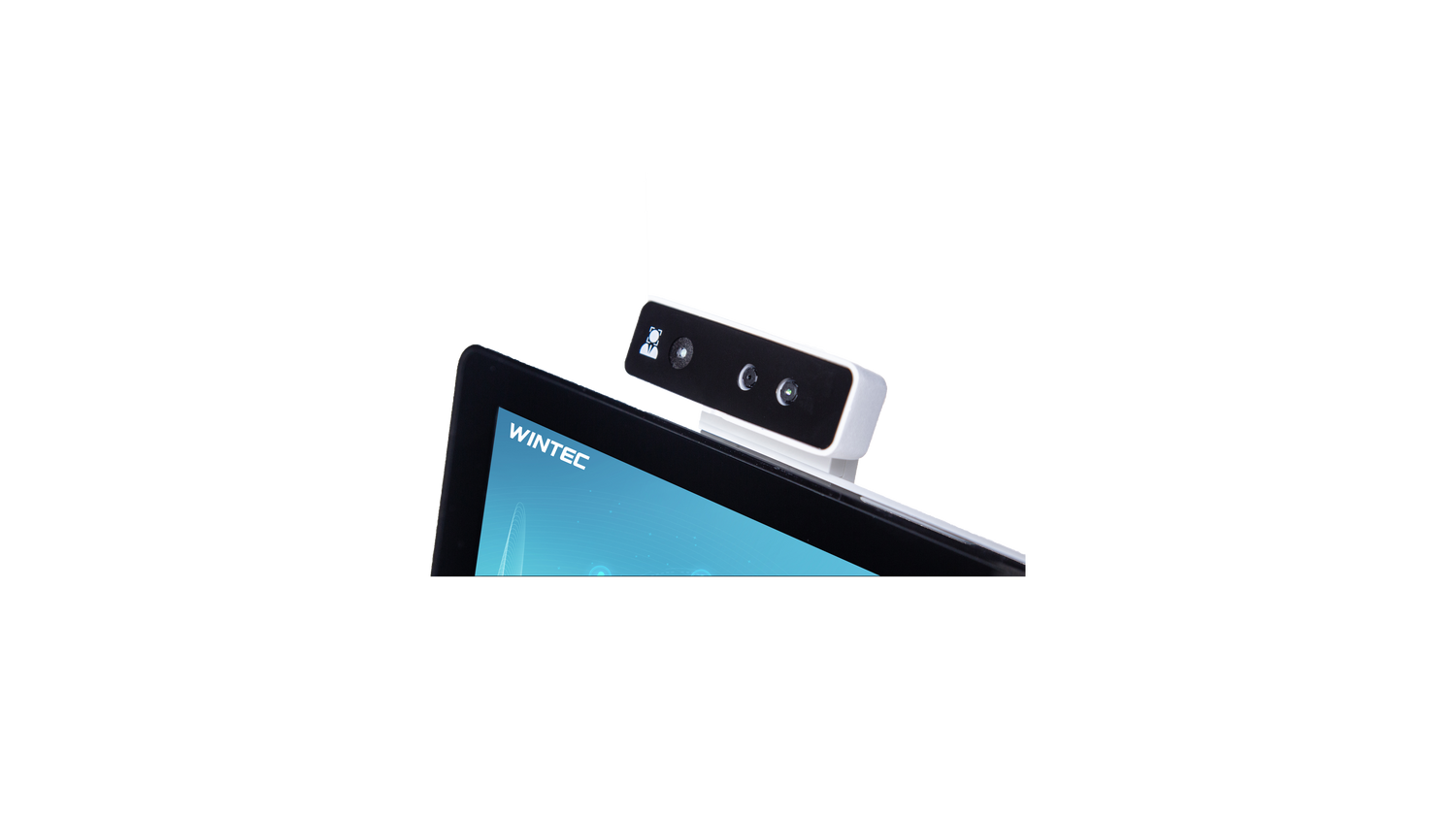

    MSR, 3D Camera or Biometric Fingerprint Reader

Download POS300 Brochure

Please contact us if you would like to receive more information.
